When you walk into any modern office building, data center, or factory, admiring the bright lights, high-speed networks, and efficient machinery, you probably don’t notice the meticulously designed system working silently overhead or under the floor—the cable tray. It acts as the skeleton for the building’s “nervous system” and “vascular network,” carrying and protecting all the power, communication, and data cables, ensuring they run in an organized manner.

1. What is a Cable Tray?

In simple terms, a cable tray is a rigid structural system used to support, protect, and manage cables.

Think of it as:

An “Elevated Highway” for Cables: It provides a dedicated, elevated pathway, preventing the chaos and hazards of randomly strung wires.

The “Skeleton” of a Building: It offers physical support and a structural framework for complex cable webs, allowing for neat and secure installation.

A “Facility Manager”: It makes installing, inspecting, replacing, and expanding cables incredibly easy. You can simply open the tray’s cover for access, avoiding the need to break through walls or floors.

Compared to traditional methods like running cables through conduits buried in walls, cable trays offer significant advantages: high flexibility, large capacity, easy maintenance, and excellent heat dissipation. They are especially suited for locations with numerous and complex cables.

2. Common Types of Cable Trays & Their Features

Based on structure and application, cable trays are mainly categorized as follows:

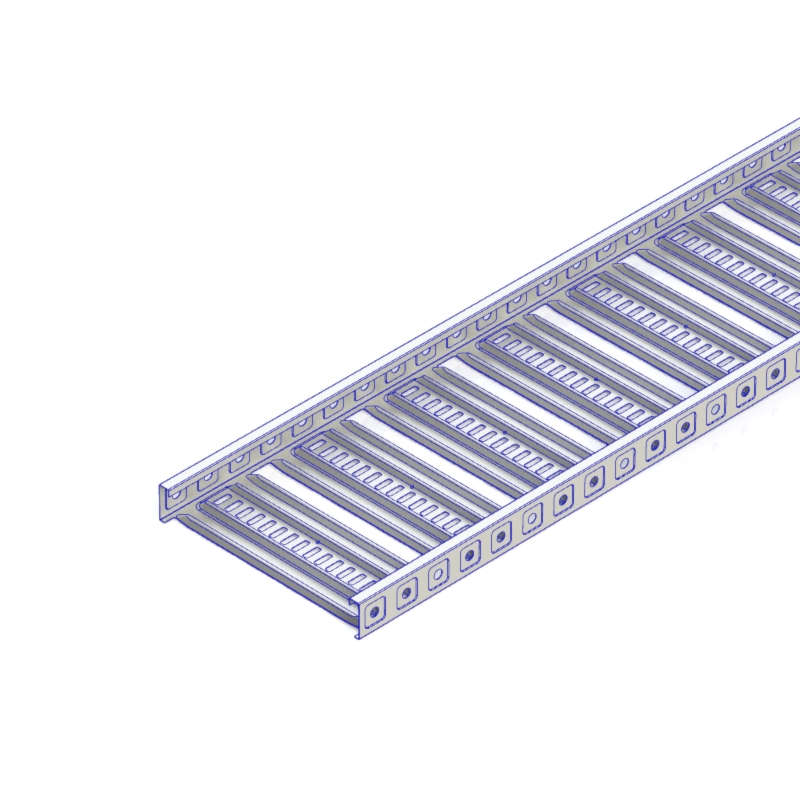

1. Ladder Type Cable Tray

Structure: Looks like a ladder, with two side rails and connecting rungs.

Advantages: Excellent heat dissipation, lightweight, high load-bearing capacity, easy cable installation and maintenance on-site.

Applications: Often used as backbone pathways for power cables, ideal for high-power, high-cable-density environments like data centers, electrical substations, and factory floors.

2. Trough Type Cable Tray

Structure: A fully enclosed “U”-shaped channel with a cover plate.

Advantages: Offers the best protection against interference, dust, moisture, and fire. Effectively shields cables from physical damage and electromagnetic interference (EMI).

Applications: Ideal for areas requiring high cleanliness and EMI protection, like server rooms, computer labs,precision instrument room, and hospitals. Perfect for data and control cables.

3. Perforated Type Cable Tray

Structure: Features a shallow, pan-like base with punched holes or a mesh pattern and raised sides, typically with a cover.

Advantages: A balanced hybrid, combining the good heat dissipation of ladder trays with the protective qualities of trough trays. The most versatile all-rounder.

Applications: The most widely used type, suitable for almost all environments, very common in both industrial and commercial buildings.

4. Wire Mesh Cable Tray (Basket Tray)

Structure: Made from welded metal wires forming an open grid.

Advantages: Extremely lightweight, highly open, superior heat dissipation, very flexible and quick to install. Aesthetic and allows for easy cable identification.

Applications: Widely used in data centers and structured cabling systems, especially suited for “overhead cable routing” where easy access and a modern look are important.

3. The Importance of Cable Trays: Why Can’t We Do Without Them?

Safety & Protection

Physical Protection: Prevents cables from being trampled, crushed, or damaged by sharp objects, avoiding insulation damage that could lead to short circuits, electric shocks, or even fire.

Fire Resistance: Typically made of steel with fire-resistant coatings, maintaining structural integrity for a certain time during a fire, helping to slow the spread of flames along cables.

Grounding Path: The metal tray itself can serve as a reliable grounding conductor, enhancing the safety of the entire electrical system.

Efficiency & Organization

Neatness & Order: Contains all messy cables within the tray system, making equipment rooms, utility shafts, etc., tidy, safe, and compliant with codes.

Easy Management: Different cable types (e.g., power vs. data) can be routed in separate layers or compartments within the same tray system using dividers, preventing interference.

Flexibility & Scalability

Ease of Maintenance: If a cable fails or needs upgrading, technicians can easily access it by removing the cover, significantly reducing downtime.

Supports Expansion: When new equipment or systems are added, new cables can simply be laid within the pre-installed trays that have spare capacity, avoiding the need for major rewiring and keeping retrofit costs low.

4. Key Points for Installation & Selection

A reliable cable tray system depends on correct selection and installation:

Material Choice: Main options are Galvanized Steel (“Mild Steel”), Stainless Steel (corrosion-resistant, for damp/corrosive areas), and Aluminum (lightweight, non-magnetic, excellent for EMI-sensitive applications).

Surface Treatment: Processes like “Hot-Dip Galvanizing” or “Powder Coating” significantly improve corrosion resistance and lifespan.

Fill Ratio: Codes typically require that the total cross-sectional area of cables inside a tray should not exceed 40%-50% of the tray’s internal area. This ensures adequate space for heat dissipation, preventing overheating.

Separation of Power & Data Cables: To prevent electromagnetic interference from power cables to data/communication cables, they are usually run in separate trays or separated by metal dividers within a shared tray.

Grounding (Earthing): The entire tray system must be reliably grounded—a critical safety measure for both personnel and equipment.

Conclusion

The cable tray, this grey system hidden above ceilings and under raised floors, is the foundation of a modern building’s intelligence and functionality. Though inconspicuous, it is as vital as the skeleton and nervous system in a human body. With its sturdy framework, it carries the torrents of the Information Age, ensuring energy and data flow safely and efficiently to every corner that needs them. Next time you’re in a bright, modern space, look up or down—you might just spot this “unsung hero” supporting our digital lives.
