The factory electrical bracket system factory electrical bracket system is the core supporting infrastructure for industrial power distribution, cable routing, electrical equipment fixing, and pipeline layout. It is As essential industrial electrical support structures, these brackets are widely used in factory workshops, electrical rooms, equipment floors, outdoor industrial zones, and explosion-proof production areas. The standardized layout of electrical bracket electrical brackets layout directly determines the stability, safety, maintainability, and service life of the entire factory electrical system. A scientific industrial bracket layout effectively avoids cable damage, electrical faults, structural overload, and safety hazards caused by irregular wiring, meeting international industrial electrical construction standards and long-term factory operation requirements.
This professional guide details the full specifications, layout principles, scene-based installation schemes, construction standards, and technical advantages of factory industrial electrical bracket systems electrical bracket systems, covering all mainstream industrial application scenarios for factory electrical wiring and support installation.
1. Complete Composition & Classification of Electrical Bracket Systems
Factory electrical bracket systems are classified by functional purpose, installation form, and load-bearing standards, covering all industrial electrical laying scenarios to achieve full-scene standardized matching for factory cable support and equipment fixing:
1.1 Cable Tray & Conduit Brackets
As the most widely used type,industrial cable support brackets, cable tray & conduit brackets are specially use signed for supporting and fixing cable trays, wire conduits, and cable trunking. A in factory environments. They are applicable to low-voltage power cables, high-voltage power cables, control cables, and weak current communication cables. It is Divided into horizontal brackets and vertical hanging brackets, with adjustable models to electrical support brackets can adapt to different cable laying widths and heights for flexible factory layout design.
1.2 Equipment Fixed Brackets
These professional electrical mounting brackets are used for fixed installation of distribution boxes, control cabinets, electrical modules, and small electrical equipment in industrial factories. Featuresing high load-bearing strength and strong structural stability, the equipment fixing electrical brackets ensuringe no displacement or vibration deviation of electrical equipment during long-term factory operation, guaranteeing stable electrical system operation.
1.3 Seismic Electrical Brackets
Seismic electrical brackets are mandatory safety configurations for modern industrial factories. Ity electrical systems. These anti-seismic cable support brackets provides lateral and longitudinal seismic protection for electrical pipelines and cable systems, effectively resisting structural displacement and vibration damage caused by earthquakes, mechanical equipment operation, and building micro-deformation, fully complying with global industrial seismic design specifications for factory electrical installations.
1.4 Floor-Standing & Wall-Mounted Integrated Brackets
Floor-standing and wall-mounted electrical brackets are suitable for heavy-load and large-span cable laying scenarios such as factory electrical shafts and central power distribution areas. The is integrated structure factory electrical support system solves the problem of scattered installation of traditional separate brackets and greatly improves the overall rigidity of the structural rigidity and stability of industrial electrical systems.
1.5 Anti-Corrosion & Explosion-Proof Special Brackets
Customized for anti-corrosion and explosion-proof electrical brackets are tailored for special industrial factories including chemical, pharmaceutical, food, and dust-explosion-risk factories. Made of production plants. Manufactured with hot-dip galvanized, stainless steel, and anti-corrosion coated materials, with industrial cable brackets adopt a fully enclosed and, burr-free structural design to adapt to high humidity, corrosive, and explosion-proof harsh working environments.
2. Core Standard Layout Principles (Industrial Universal Specifications)
All factory electrical bracket layout electrical bracket layout designs strictly follows international and domestic industrial electrical construction standards (GB 50168-2018, GB 50217-2018), adhering to the five core principles of or standard industrial electrical installation: stable load-bearing, layered classification, safe distance, convenient maintenance, and environmental adaptation: to ensure compliant and reliable cable support systems.
2.1 Layered Layout & Voltage Classification Principle
For multi-layer bracket and multi-tray laying, lay cables in industrial factories, all cables must be laid in strict accordance with the voltage level from strong to weak (bottom to top): high-voltage power cables → low-voltage power cables → instrument control cables → weak current communication cables. This professional layered electrical bracket layout layout effectively avoids electromagnetic interference between strong and weak current circuits and ensures stable signal transmission and power supply quality for factory electrical equipment.
Standard layer spacing: ≥300mm between power cable layers, ≥200mm between control cable layers, and the net distance between layers shall not be less than 2 times the cable outer diameter plus 10mm; 35kV and above high-voltage cables need a minimum spacing of 2 times the outer diameter plus 50mm.
2.2 Safe Spacing Layout Standard
Strictly control the distance between electrical brackets and factory process pipelines, heat sources, and building structures to avoid safety risks:Standard electrical bracket spacing layout strictly controls the distance between factory electrical brackets, industrial process pipelines, heat sources, and building structures to eliminate potential electrical safety hazards in factory operation:
- Parallel laying with ordinary process pipelines: spacing ≥0.5m
- Parallel laying with thermal pipelines: spacing ≥1.0m (avoid heat-induced cable capacity attenuation, 10℃ temperature rise will cause 2%-3% cable capacity drop)
- Cross laying of all pipelines: spacing ≥0.3m
- Brackets installed through fire walls and floor slabs: brackets must be set on both sides of the fire wall with a spacing ≤1.0m, matched with fire blocking treatment
2.3 Load-Bearing & Deflection Control Principle
The bracket layout spacing is scientifically set according to the cable total load and tray material to ensure structural stability and no permanent deformation:The installation spacing of industrial electrical support brackets is scientifically configured according to the total cable load and tray material to guarantee structural stability and zero permanent deformation of the factory cable support system:
- Steel cable tray brackets: standard spacing 1.5m-2.0m, maximum deflection ≤1/200 of the span
- Aluminum alloy tray brackets: standard spacing 1.2m-1.8m, maximum deflection ≤1/150 of the span
- Heavy-load cable and large-span laying: reduce spacing appropriately and add auxiliary reinforcing brackets
2.4 Neat & Maintainable Layout
All brackets Standardized factory electrical bracket installation requires all brackets to be installed horizontally and vertically with uniform spacing. Avoid Random crossing and overlapping of cables. Reserve factory cables are strictly prohibited. Sufficient operation and maintenance space on both sides and upper and lower parts of reserved around the bracket system to facilitate later cable detection, replacement, and electrical equipment maintenance. The turn bending position of the electrical bracket matches the cable bending radius (≥10 times the cable outer diameter for ordinary cables, ≥15 times for high-voltage cables) to prevent cable insulation layer damage.
3. Scenario-Based Special Layout Solutions
According to the different functional areas and environmental conditions of the factory, targeted bracket layout schemes are adopted to adapt to differentiated industrial needs:According to differentiated functional areas and environmental conditions of industrial factories, we adopt targeted electrical bracket layout solutions to meet diverse industrial cable support and installation requirements for different working conditions:
3.1 General Production Workshop Layout

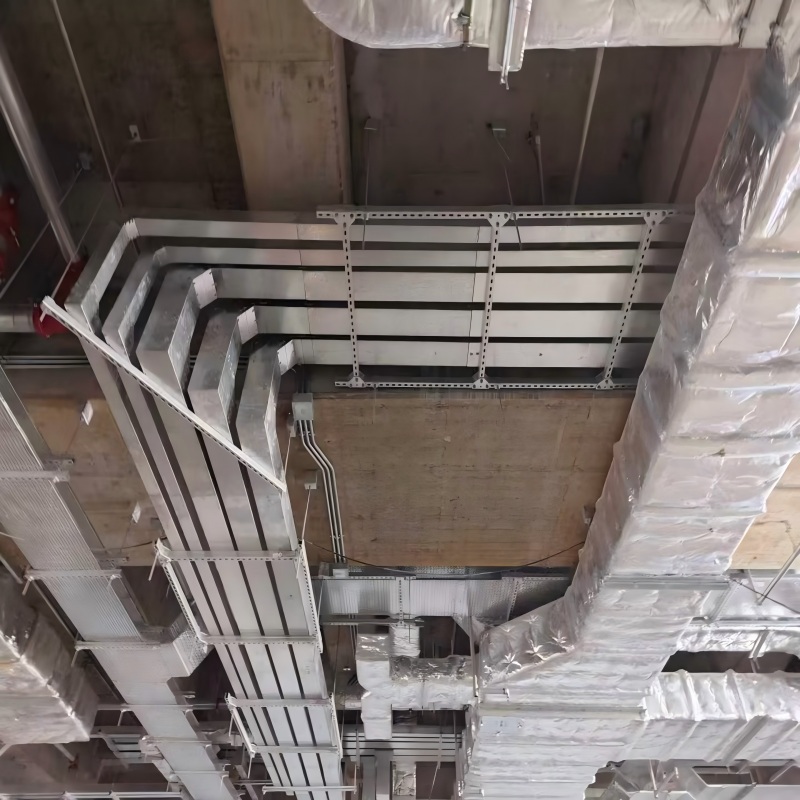

Adopt wall-mounted and ceiling-mounted combined bracket layout. Horizontal layered laying is adopted for workshop overhead cables, with power cables and weak current cables laid in layers separately. Uniform spacing and horizontal calibration are realized by laser positioning. The bracket height is set to avoid production equipment and walking passages, ensuring no impact on factory production and logistics. Light-duty and medium-duty standard brackets are selected to match conventional power distribution load.General factory production workshops adopt a combined wall-mounted and ceiling-mounted electrical bracket layout scheme. Overhead factory cables are laid in horizontal layers, with power cables and weak current cables separated and classified. Laser positioning ensures uniform bracket spacing and accurate horizontal calibration. The bracket installation height avoids production equipment and pedestrian passages, ensuring no interference with factory production and logistics. Light-duty and medium-duty standard electrical brackets are selected to match conventional factory power distribution loads.
3.2 Electrical Room & Shaft Layout
Adopt floor-standing integrated bracket grouping layout. Classify and fix incoming and outgoing lines, bus lines, and branch lines in groups. Set longitudinal seismic brackets at intervals to enhance overall stability. Compact and layered layout is adopted for narrow shaft spaces to maximize space utilization while meeting heat dissipation and maintenance requirements. All brackets are reinforced to adapt to long-term heavy-load operation of central power distribution.Electrical rooms and cable shafts adopt floor-standing integrated industrial electrical bracket grouping layout. Incoming and outgoing lines, bus lines, and branch lines are classified and fixed in groups with dedicated support brackets. Longitudinal seismic electrical brackets are installed at regular intervals to enhance overall system stability. The compact layered bracket layout maximizes narrow shaft space utilization while meeting cable heat dissipation and daily maintenance standards. All support brackets are structurally reinforced to adapt to long-term heavy-load operation of factory central power distribution systems.
3.3 Outdoor Factory Zone Layout
All brackets adopt hot-dip galvanized or stainless steel anti-corrosion treatment. Add rainproof and sunshade auxiliary structures for overhead laying. Increase bracket fixation strength and reduce spacing appropriately to adapt to outdoor wind load and temperature deformation. Reserve expansion joints at long-distance laying positions to avoid structural damage caused by thermal expansion and contraction.All outdoor factory electrical brackets are treated with hot-dip galvanized or stainless steel anti-corrosion processing to adapt to outdoor harsh environments. Overhead installed brackets are equipped with auxiliary rainproof and sunshade structures. Bracket fixation strength is enhanced and installation spacing is appropriately reduced to resist outdoor wind load and temperature deformation. Expansion joints are reserved for long-distance bracket laying to avoid structural damage caused by thermal expansion and contraction of outdoor electrical support systems.
3.4 Explosion-Proof & Corrosive Workshop Layout
Use fully enclosed anti-corrosion brackets with no exposed sharp edges and no loose parts. All connection fittings adopt anti-loosening structure. Avoid gaps where dust and corrosive liquid accumulate. The overall layout is simple and easy to clean, meeting explosion-proof and anti-corrosion safety standards for special industrial workshops.
4. Precision Construction & Installation Standards
Our electrical bracket system layout strictly implements standardized construction processes with precise parameter control to ensure project quality:
4.1 Positioning & Calibration
Adopt laser level line calibration for fixed-point laying. The horizontal deviation of bracket installation ≤2mm/m, vertical deviation ≤3mm/m. Unified line snapping and positioning are carried out according to construction drawings to ensure neat and consistent overall layout.
4.2 Fixation Construction Standard
Priority is given to expansion bolt fixation (suitable for C20 and above concrete structures) to avoid damaging the building structure by welding. For pre-embedded structural parts, correct the flatness deviation first to ensure firm and fitting installation. All cutting surfaces are polished without burrs, and the length tolerance is controlled within ±3mm. The welding position is full and uniform without cracks and pores.
4.3 Post-Installation Inspection
Complete load-bearing test, flatness detection, and safety distance inspection after installation. Carry out anti-rust and anti-corrosion repair treatment for welding and cutting positions. All materials are equipped with qualified certificates to ensure mechanical properties and safety indicators meet industrial standards.
5. Core Advantages of Standardized Bracket System Layout
- High Safety & Stability: Scientific load-bearing matching and seismic structure design avoid cable falling, line damage, and electrical short-circuit faults, reducing factory electrical safety risks.
- Strong Anti-Interference Ability: Layered voltage classification layout effectively isolates strong and weak current electromagnetic interference, ensuring stable operation of power supply and control signal systems.
- Durable & Low Maintenance: Anti-corrosion and wear-resistant material matching + standardized installation greatly extend the service life of the electrical system, reduce later maintenance frequency and cost, and improve factory operational efficiency.
- High Space Utilization: Reasonable layered and grouped layout optimizes factory space resources, avoids chaotic wiring, and beautifies the overall industrial layout.
- Full Standard Compliance: Comply with national and international industrial electrical specifications, meeting factory safety inspection, certification acceptance, and long-term expansion and transformation needs.
6. Applicable Industries & Scenarios
Widely applicable to factory electrical system construction and transformation in manufacturing, chemical industry, new energy, food processing, pharmaceutical industry, textile industry, warehouse logistics, and industrial park standard workshops. It can provide customized layout schemes for light-load, heavy-load, anti-corrosion, explosion-proof, seismic, and other special working conditions.
